Zoye Eyeglass Hinge Wooden Horn Eyeglass Sunglasses With Stainless Steel Screws Spacers ZSH-02 Ship In 2 Days 3 Pairs Pack

Description

Features:

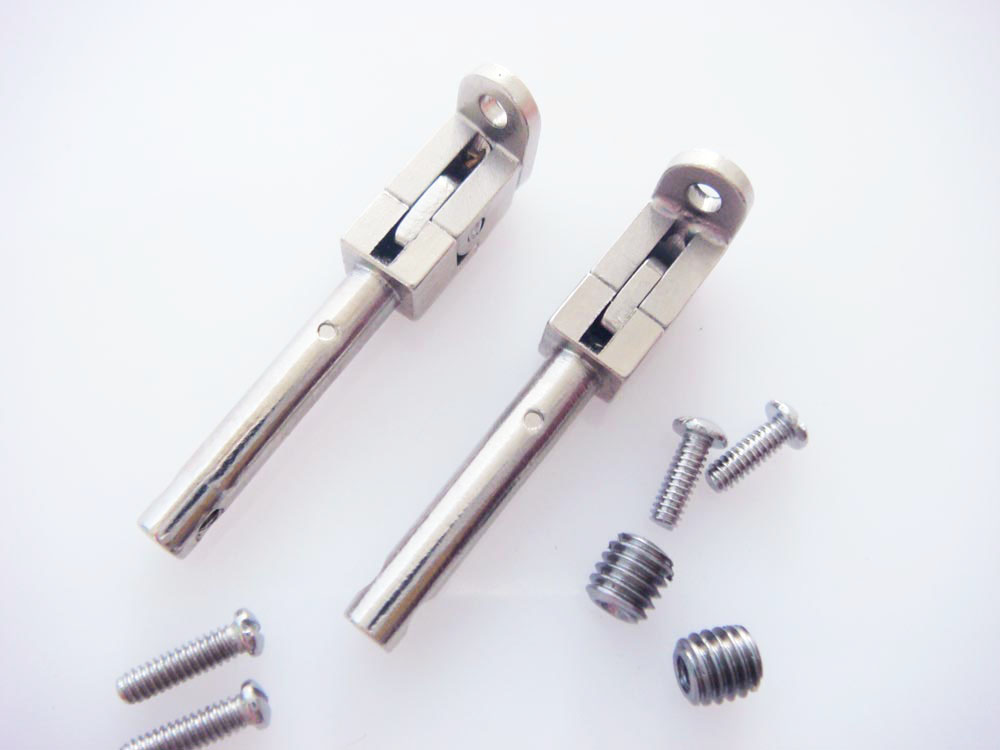

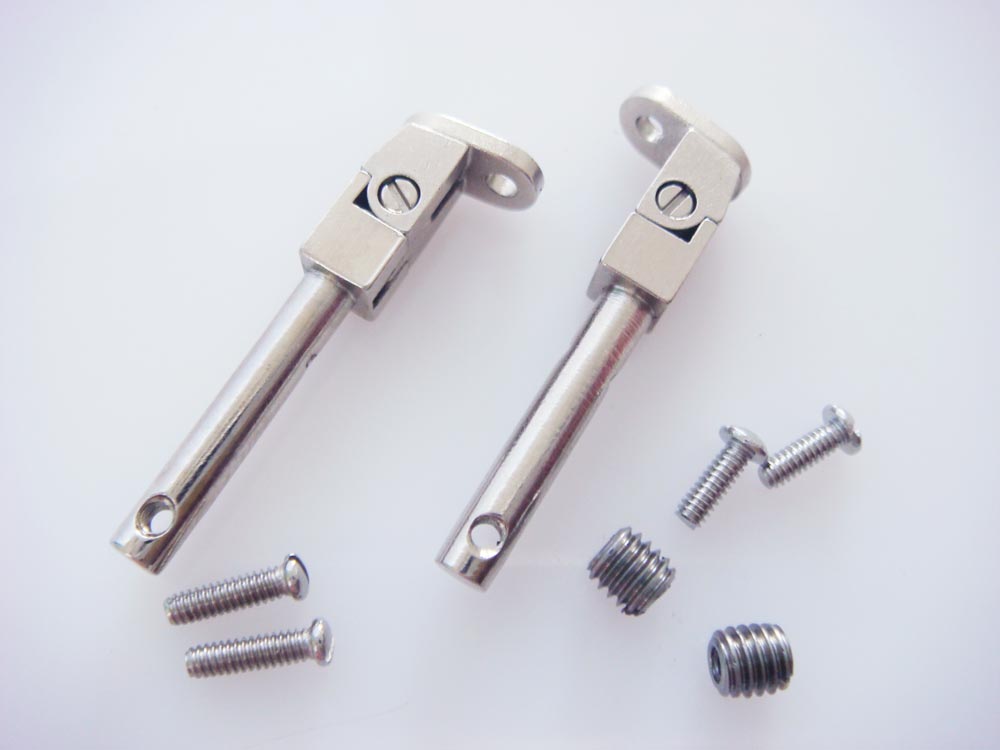

Kindly note the price includes one pair of hinges (one left hinge+ one right hinge) and M2.85 spacers /4.0mm front screws/5.0mm temple screws  2 pcs each which are necessary for installing.

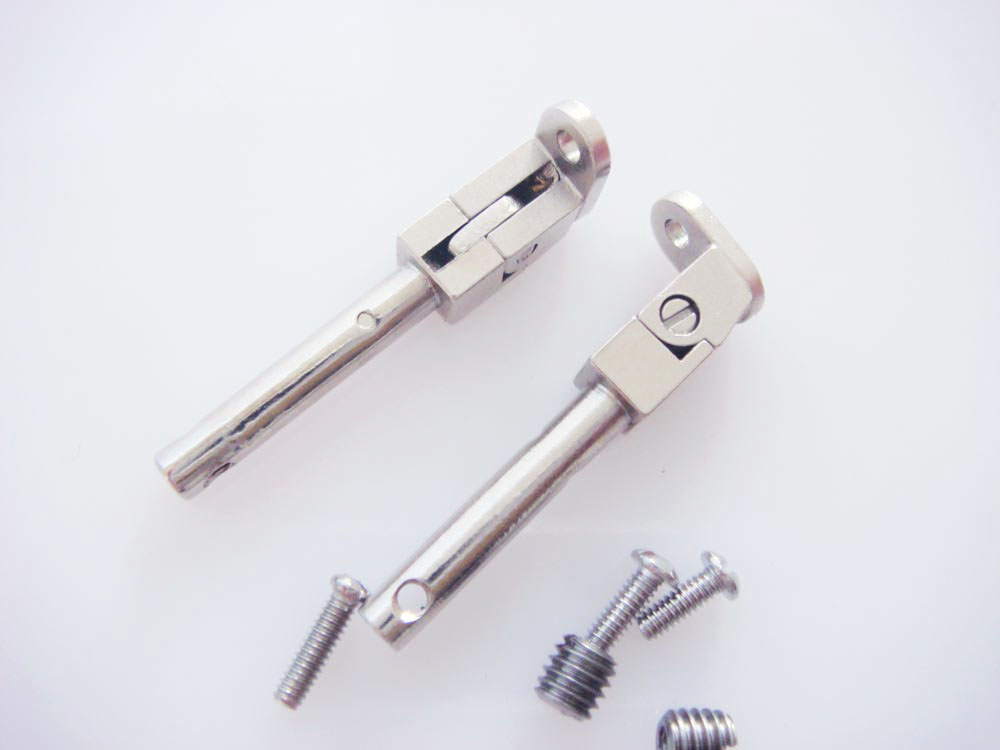

This is one spring hinge,popular for wood sunglasses,bamboo eyewear,TR-90 eyeglass and nylon frames,which is soldering free model and could be installed by screws and glue only.

It sells 20000 prs per month and now it's  10% off for promotion !

Best time to buy it now in ZOYE eyeglass parts,  we are only for eyeglass parts !

PACKING:

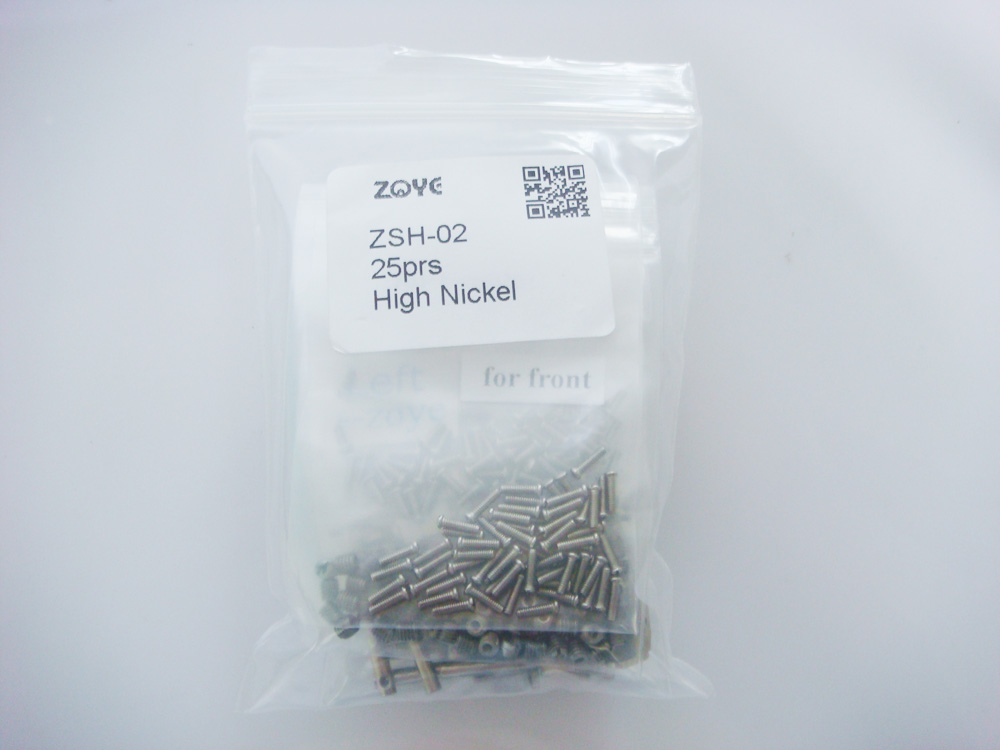

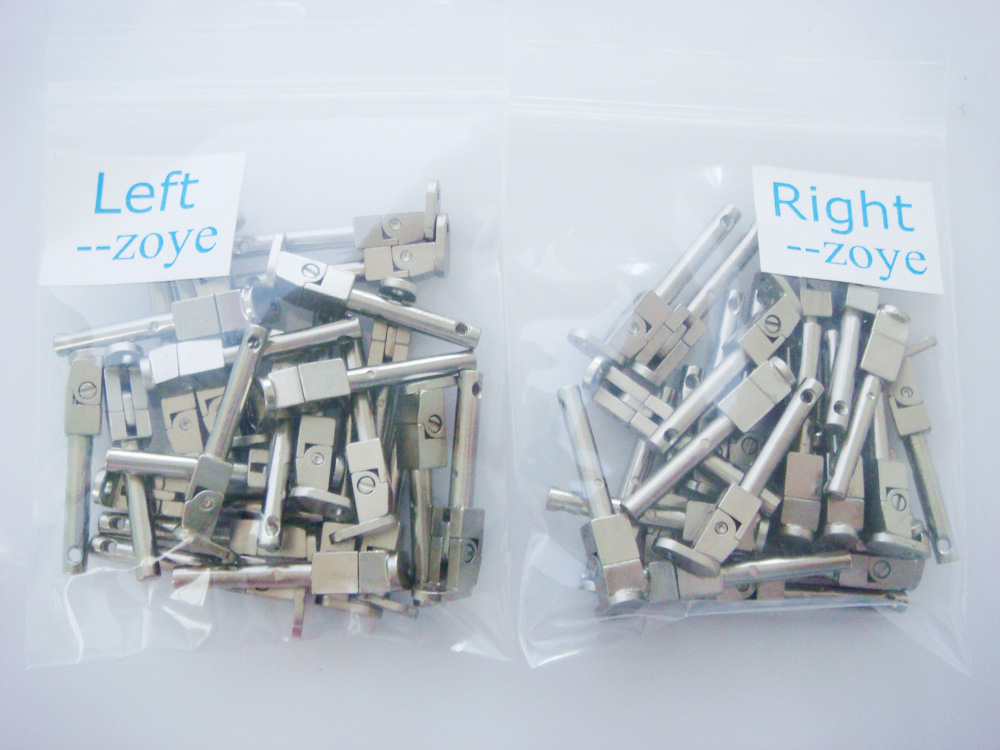

left ,right hinge, spacers, screws for front and temples are all packed seperately in plastic sealled bag with each labelled on; packed them together in one bigger bag,then put into one bubble envelop, with customers detailed address,telephone number sticked on for shipping purpose.

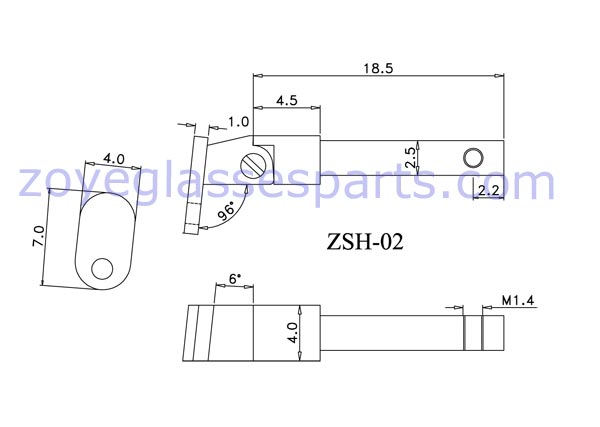

DRAWING:

How to install hinges ZSH-02/TSH-10/TSH-70 onto wood bamboo eyeglass:

Firstly,make one recess on your frame front,screwing the spacers (grabbing screws) in .

Secondly,make square recess on temples, drill one long round hole meanwhile;

Thirdly,insert temple  hinges in;

Fourthly, screw the hinges onto front, through metal piece and into spacers.

Fifthly,screw the hinges from temples side:

Finished.

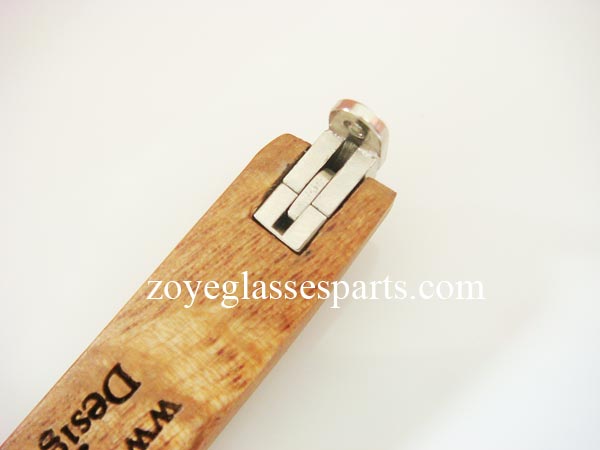

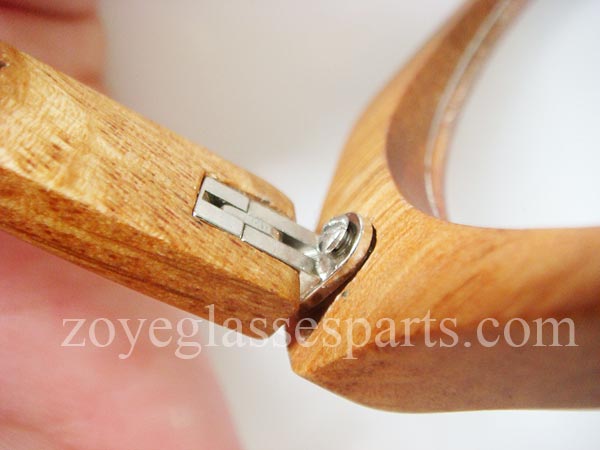

How it looks onto frame:

Why we are much better than others:

left is other supplier's, right is ours;
in profile:

in spacers:

In workmanshop:
